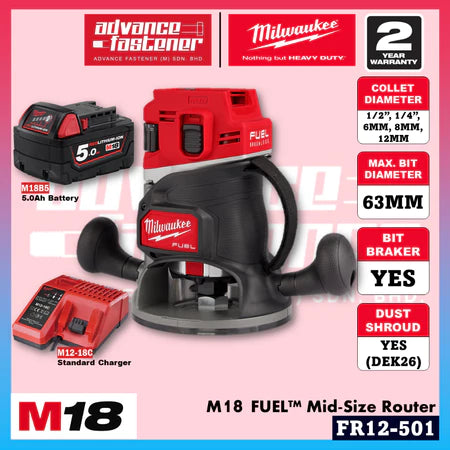

Milwaukee FR12-501 / FR12-0 M18 FUEL™ Mid-Size Router

FR12-501 M18 FUEL™ Mid-Size Router (5.0Ah Full Set) Included:

1 x FR12 M18 FUEL™ Mid-Size Router

1 x M18B5 M18 5.0Ah Battery

1 x M12-18C Standard Charger

FR12-0 M18 FUEL™ Mid-Size Router (Machine Only) Included:

1 x FR12 M18 FUEL™ Mid-Size Router

Standard Equipment:

1x Fixed Base, 1x 1/2" Collect, 1x 1/4" Collect, 1x 6mm Collect, 1x 12mm Collect, 1x Dust Shroud, 1x Universal Hose Adaptor, 1x Edge Guide, 1x Template Base, 2x Wrench

Features:

✅ POWERSTATE™ Brushless Motor: Generates the power and torque of 2.25 peak HP corded routers for clean cuts in hardwood.

✅ REDLINK PLUS™ intelligence.

✅ Sturdy machined aluminium body for stable plunges

✅ 6-step depth turret provides quick, accurate depth adjustments at 1/8'' (3.175mm) increments.

✅ Micro-adjust knob offers precise depth tuning at 1/64'' (0.4mm) increments and the macro-adjust button provides fast adjustments.

✅ Variable speed dial provides precise RPM adjustments from 12,000 to 25,000 to optimize bit speed to the application.

✅ Included 13mm (1/2"), 6.35mm (1/4"), 6mm, 8mm and 12mm collets for compatibility across common router bit shanks.

✅ Tool-free spindle lock provides easy bit changes with one 27mm (1-1/16") collet wrench

✅ Dual-LED lights illuminate the workpiece for greater application visibility in low light conditions.

✅ Included edge guide with micro and macro adjustments expand the versatility on the jobsite.

✅ Included templating 152.4mm sub-base plate accepts 30mm guide bushings.

✅ Included universal hose adapter provides compatibility with a wide range of vacuum sizes.

✅ Compatible with the Milwaukee® 1/2" Router Plunge Base (Sold Separate

Specifications:

✅ Voltage (V): 18

✅ Motor Type: POWERTATE Brushless

✅ Plunge Depth: 63.5mm (2-1/2”)

✅ Base Diameter: 152.4mm (6”)

✅ Length: 325mm (12-3/4”)

✅ Width: 152.4mm (6”)

✅ Min Height: 211mm (8-1/4”)

✅ Max Height: 275mm (10-7/8”)

✅ Collet capacity (mm): 12.7

✅ Max bit diameter (mm): 63

✅ No Load Speed (RPM): 12,000 - 25,000

✅ Plunge Capacity (mm): 60

✅ Speed Settings: 6

✅ Bit Braker: Yes

✅ LED Light: Yes

✅ Weight (kg): 3.6 (M18B5)
